PlantUMLでクラス図を描く
クラス図の例_
マーチン・ファウラー著 UMLモデリングのエッセンス 第3版 図3.1をPlantUMLで描くと以下のようになる。

上記のクラス図は以下のPlantUML記法で生成される。
- Fig3.1.puml(テキストファイル)
' マーチン・ファウラー著 UMLモデリングのエッセンス 第3版 図3.1 @startuml{Fig3.1.png} title 簡単なクラス図 class "Order (注文)" as Order { dateReceived: Date [0..1] isPrepaid: Boolean [1] number: String [1] price: Money dispatch() close() } ' 制約をノートとして記述する note top of Order {if Order.customer.getCreditRating is "poor" \n then Order.isPrepaid must be true} end note class "Order Line (注文明細)" as OrderLine { quantity: Interger price: Money } class "Product (製品)" as Product { quantity: Interger price: Money } class "Customer (顧客)" as Customer { name [1] address [0..1] getCreditRating(): String } class "Corporate Customer (法人顧客)" as CorporateCustomer { contactName creaditRating creditLimit billForMonth(Integer) remind() } class "Personal Customer (個人顧客)" as PersonalCustomer { creditCardNumber } ' 制約をノートとして記述する note top of PersonalCustomer {getCreditRating() == "poor"} end note Order "1" --> "*" OrderLine : " lineitems {ordered}" Order "*" --> "1" Customer OrderLine "*" --> "1" Product CorporateCustomer --|> Customer PersonalCustomer --|> Customer CorporateCustomer "*" --> "0..1" Employee : salesRep @enduml
クラスボックス_
もっともシンプルなクラス図_

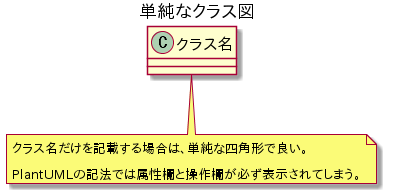

もっともシンプルなクラス図は1つのクラスボックス(四角形)にクラス名を描いたもの。

上記のクラス図は以下のPlantUML記法で生成される。
- OnlyBox.puml(テキストファイル)
@startuml{OnlyBox.png} title 単純なクラス図 class "クラス名" as OnlyClassBox note bottom of OnlyClassBox クラス名だけを記載する場合は、単純な四角形で良い。\n PlantUMLの記法では属性欄と操作欄が必ず表示されてしまう。 end note @enduml
属性と操作が記載されたクラス_

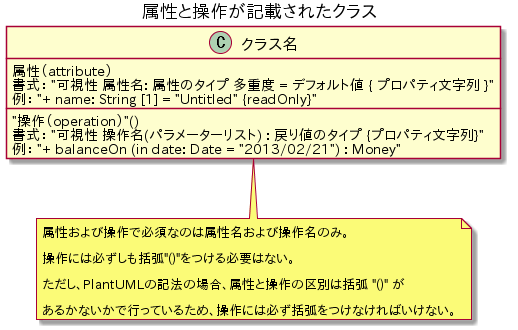

属性と操作も記述したクラスは以下のようになる。

- FullSet.puml(テキストファイル)
@startuml{FullSet.png} title 属性と操作が記載されたクラス class "クラス名" as FullSet { 属性(attribute) 書式: "可視性 属性名: 属性のタイプ 多重度 = デフォルト値 { プロパティ文字列 }" 例: "+ name: String [1] = "Untitled" {readOnly}" "操作(operation)"() 書式: "可視性 操作名(パラメーターリスト) : 戻り値のタイプ {プロパティ文字列}" 例: "+ balanceOn (in date: Date = "2013/02/21") : Money" } note bottom of FullSet 属性および操作で必須なのは属性名および操作名のみ。\n 操作には必ずしも括弧"()"をつける必要はない。\n ただし、PlantUMLの記法の場合、属性と操作の区別は括弧 "()" が\n あるかないかで行っているため、操作には必ず括弧をつけなければいけない。 endnote @enduml
プロパティ、属性と関連_
クラス図ではプロパティは属性あるいは関連で表現される。
関連_

- Association.puml(テキストファイル)
@startuml{Association.png} title 関連 class "クラスA" as ClassA class "クラスB" as ClassB ClassA -right- ClassB @enduml
プロパティを属性で表した場合_

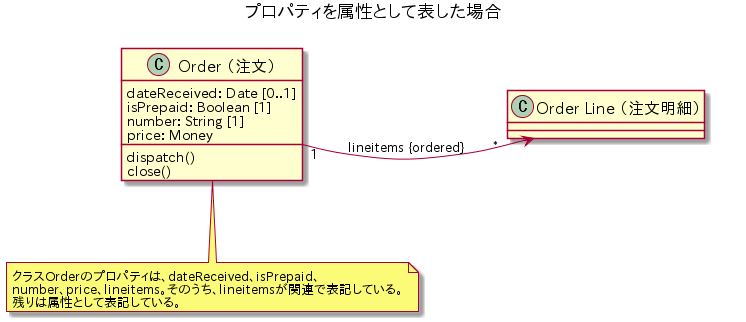

上述の「簡単なクラス図」からクラスOrderとその関連クラスの一部を抜き出した図が以下のもの。

- PropertyAsAttribute.puml(テキストファイル)
@startuml{PropertyAsAttribute.png} title プロパティを属性として表した場合 class "Order (注文)" as Order { dateReceived: Date [0..1] isPrepaid: Boolean [1] number: String [1] price: Money dispatch() close() } note bottom of Order クラスOrderのプロパティは、dateReceived、isPrepaid、 number、price、lineitems。そのうち、lineitemsが関連で表記している。 残りは属性として表記している。 end note class "Order Line (注文明細)" as OrderLine Order "1" -right-> "*" OrderLine : " lineitems {ordered}" @enduml
プロパティを関連で表した場合_

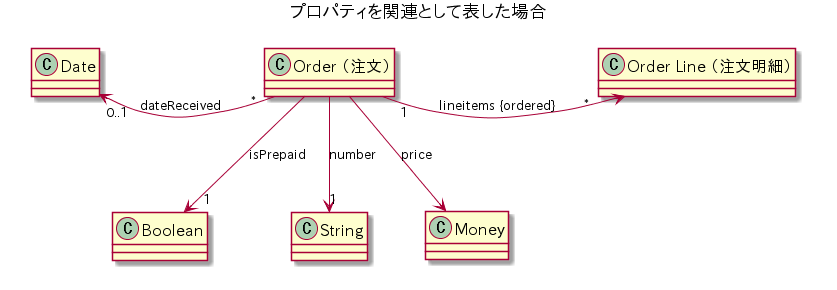

クラスOrderの属性として述べられているプロパティを関連として描くと以下のようになる。

- PropertyAsAssociation.puml(テキストファイル)
@startuml{PropertyAsAssociation.png} title プロパティを関連として表した場合 class "Order (注文)" as Order class "Order Line (注文明細)" as OrderLine Order "1" -right-> "*" OrderLine : " lineitems {ordered}" Order "*" -left-> "0..1" Date : "dateReceived" Order --> "1" Boolean : "isPrepaid" Order --> "1" String : "number" Order --> Money : "price" @enduml
誘導可能性矢印_

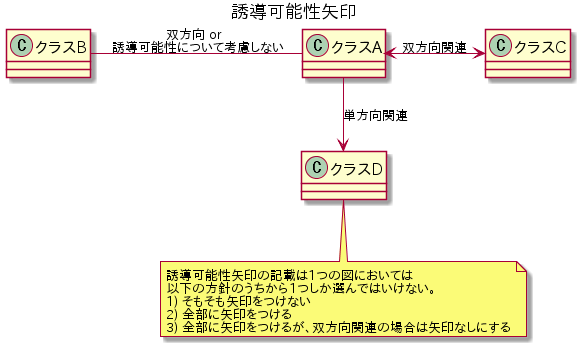

関連において、線分の片方だけ矢印がある関連が単方向関連、両方に矢印がある関連が双方向関連という。この矢印を誘導可能性矢印という。

- NavigabilityArrows.puml(テキストファイル)
@startuml{NavigabilityArrows.png} title 誘導可能性矢印 class "クラスA" as ClassA class "クラスB" as ClassB class "クラスC" as ClassC class "クラスD" as ClassD ClassA -left- ClassB : 双方向 or \n 誘導可能性について考慮しない ClassA <-right-> ClassC : 双方向関連 ClassA -down-> ClassD : 単方向関連 note bottom of ClassD 誘導可能性矢印の記載は1つの図においては 以下の方針のうちから1つしか選んではいけない。 1) そもそも矢印をつけない(誘導可能性について考慮しない) 2) 全部に矢印をつける 3) 全部に矢印をつけるが、双方向関連の場合は矢印なしにする endnote @enduml
汎化_

- Generalization.puml(テキストファイル)
@startuml{Generalization.png} title 汎化 class "スーパータイプ" as SuperType class "サブタイプ1" as SubType1 class "サブタイプ2" as SubType2 SuperType <|-- SubType1 SuperType <|-- SubType2 @enduml

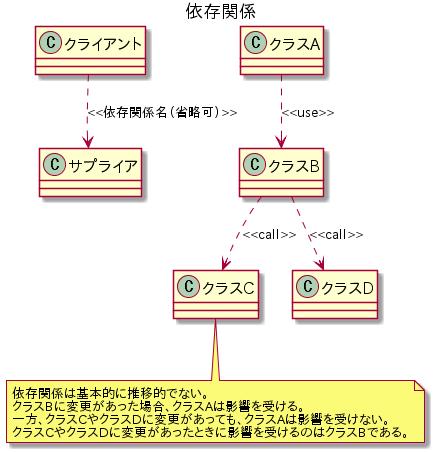

依存関係_

- Dependency.puml(テキストファイル)
@startuml{Dependency.png} title 依存関係 "クライアント" ..> "サプライア" : <<依存関係名(省略可)>> class "クラスA" as ClassA class "クラスB" as ClassB class "クラスC" as ClassC class "クラスD" as ClassD ClassA ..> ClassB : <<use>> ClassB ..> ClassC : <<call>> ClassB ..> ClassD : <<call>> note bottom of ClassC 依存関係は基本的に推移的でない。 クラスBに変更があった場合、クラスAは影響を受ける。 一方、クラスCやクラスDに変更があっても、クラスAは影響を受けない。 クラスCやクラスDに変更があったときに影響を受けるのはクラスBである。 endnote @enduml
